Radiomaster Zorro

Original price $119.99 - Original price $119.99
Original price
$119.99
$119.99 - $119.99
Current price $119.99

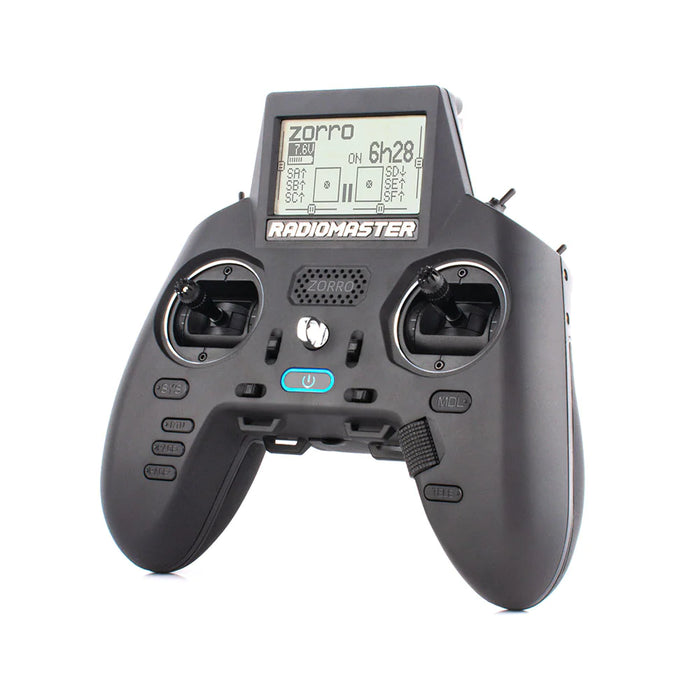

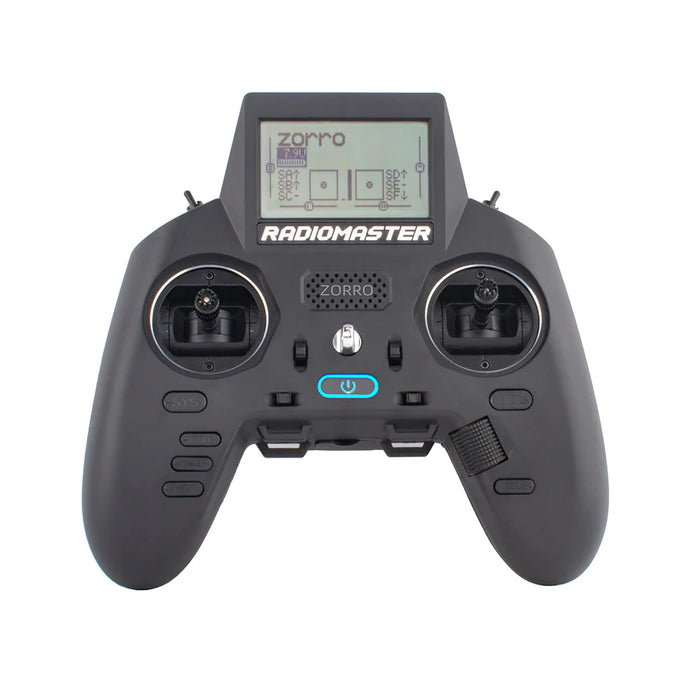

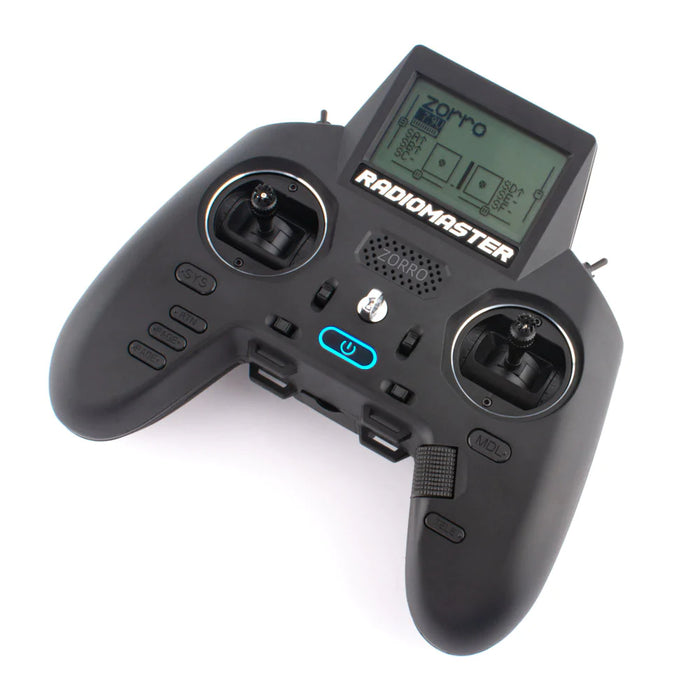

RadioMaster Zorro Raio - The Compact Class-Leader.

Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

Zorro radio controller

Specification

Versions

CC2500

4in1

ELRS

ELRS Starter Set

CC2500 + TBS Nano Crossfire Combo

Physical Dimensions

170*159*108mm

Weight

350 grams

Operating Frequency

2.400GHz-2.480GHz

Internal RF Options

CC2500 multi-protocol

4-in-1 multi-protocol

ELRS

CC2500 multi-protocol

Supported Protocols

Module dependent

Module dependent

ELRS

Module dependent

RF Power

CC2500: 20dBm max.

4-in-1: 20dBm max.

Up to 250mw ( CE & FCC Versions will be available)

CC2500: 20dBm max.

Antenna Gain

Folding 2db

Operational Current

160mA@8.4V

Operational Voltage

6.6-8.4v DC

Control Distance

> 2km @ 20dbm

> 2km @ 20dbm

Receiver and Power Output dependant

> 2km @ 20dbm

Operating system

OpenTX / EdgeTX Compatible

Control channels

Maximum 16 (Rx dependent)

Display

128*64 Monochrome LCD

Battery

2 x 18350 (Not included)

Charging

Built in USB-C Charging

Gimbal

Hall-effect

Module Bay

Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)

Firmware Upgrade Method

Via USB or SD card


Support OPENTX & EDGETX

radiomaster zorro radio OPENTX EDGETX

Support 4 RF Configurations

radiomaster zorro radio controller

Switchable in Mode 1 and Mode 2

Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.

RadioMaster Zorro Radio


Adjustable Hall Gimbals

radiomaster hall gimbals

External Module Bay

Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.

RadioMaster Zorro Radio

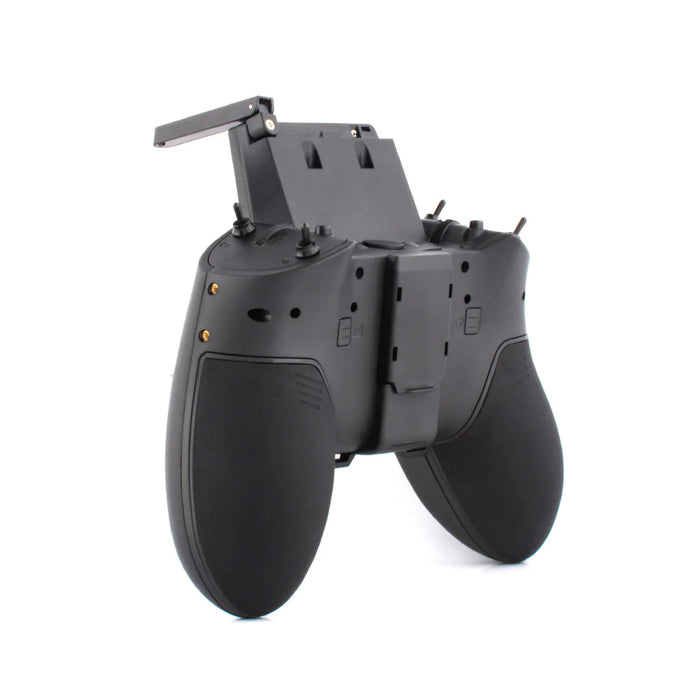

18350 Battery Compartments

Battery Charging

  • Supports USB-C Directing Charging

  • Supports External 2S Battery Power Supply

Oversized LCD & Foldable Antenna
RadioMaster Zorro Radio oversized LCD

 DIY Attachment Points

RadioMaster Zorro Radio DIY Attachment Points

Ergonomically Designed


Package Includes

Please note, when you choose a different version, it is packaged with different parts.

The chart below doesn't mean you will receive all versions.

Version Package Includes
CC2500
  • 1 * Zorro Radio Controller CC2500 Version
4-in-1
  • 1 * Zorro Radio Controller 4-in-1 Version
ELRS
  • 1 * Zorro Radio Controller ELRS Version
ELRS Starter Set
CC2500 + TBS Nano Crossfire Combo
  • 1 * Zorro Radio Controller CC2500 Version
  • 1 * TBS Nano Crossfire Module
