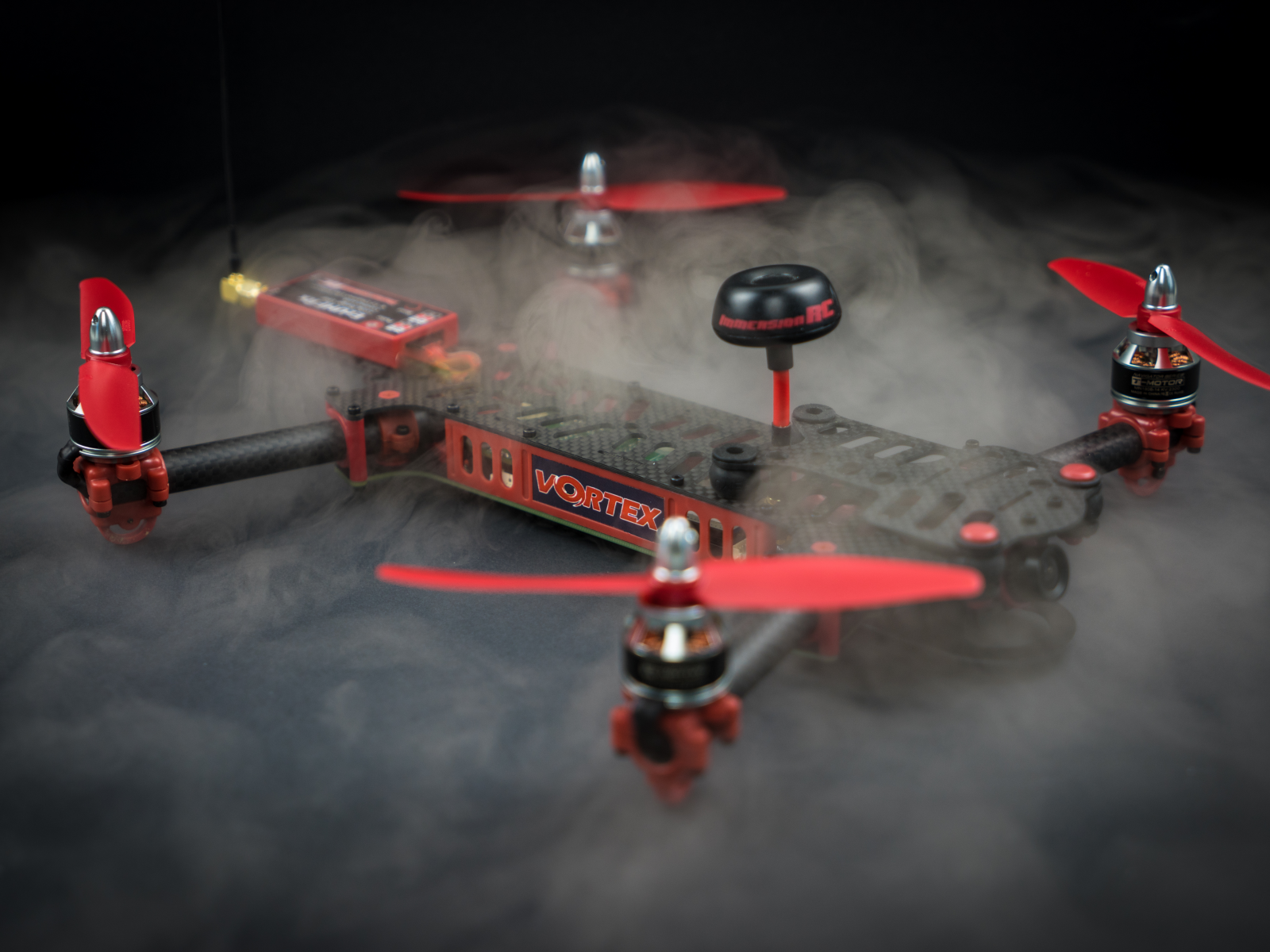

immersionrc vortex photo

ImmersionRC Vortex Preview

In News by Mike Tseng0 Comments

I’ve found my next FPV quad

The ImmersionRC Vortex is going to be the DJI Phantom of the FPV quadcopter racing world.  ImmersionRC is mostly known for their 600mw video transmitter but now they are building ARF (Almost Ready to Fly) quads.  The reason the Phantoms fly so well is that they are all built the same so they are factory tuned to fly great.  This is the same concept with ImmersionRC’s Vortex.  I’m guessing, since the Vortex hasn’t been released yet, the Vortex will be very locked in.  The hardest part about tuning a quadcopter built from scratch is that the components vary from quad to quad so there’s no baseline PID settings that will work with all quads.

Highlights of the ImmersionRC Vortex
  • Starts at $399
  • 285mm with foldable arms
  • Carbon fiber and injection molded parts
  • Integrated Flight Controller flashed with Cleanflight
  • Integrated OSD with tuning options
  • NexWaveRF 5.8GHz Video TX
  • Titable, Vibration-free Camera mount
Here’s what I love about the Vortex

Foldable Arms – I’m a huge fan of foldable arms like Hovership’s Racehound.  I’ve crashed this thing so many times and have only broken props.  It’s like having a crumple zone on your quad.

immersionrc vortex osdBuilt in OSD (on screen display) – Highly customizable OSD that lets you tune PIDs, change quad settings, realtime flight info and much more.

Custom ESC’s with Cleanflight – ESC’s that fit inside the arms with rotorSENSE.  No more worrying about how to solder wires to motors.  You can tell the motors which way to spin just by rotating the prop in the direction you need with your finger.

Rear LED – Integrated 24-bit RGB LED on the rear with selector button.  Let’s you change the color of the LED by pushing the button.  This would be awesome when you’re racing your friends by assigning each racer a color.  The lights are programmable also.  You can do things such as make it a brake light, turn signals or flash different colors.

Price – Starting at $399 for the base model or $449 with upgraded motors.

Let’s look at a breakdown of buying an ARF Vortex vs building from scratch with similar parts.

 VortexZUUL Superbeast
Frame 285mmIncluded$155
Flight ControllerIncluded$25 Naze32
OSDIncluded$175 ImmersionRC EzOSD
Video TXIncluded$45
FPV CameraIncluded$42 FatShark 600TVL CMOS
AntennaIncluded$40 SpiroNet Antenna
MotorsIncluded$100 Tiger Motor MN1806-2300kv
ESC'sIncluded$56 Rotorgeeks 12a
Total$399$638

That’s a difference of $239 not including small things like LED’s, props and comes pre-tuned.  Since it will be an ARF package, you’ll need a transmitter, monitor/goggles with RX, batteries

I’m sold, take my money.  Check back soon for a full review once it’s released.
